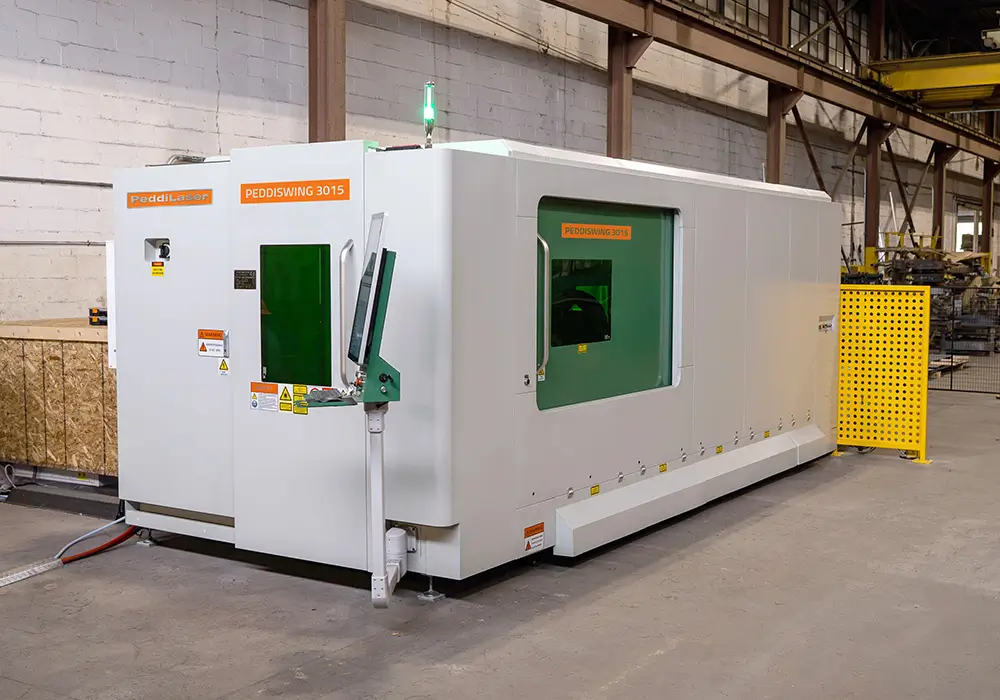

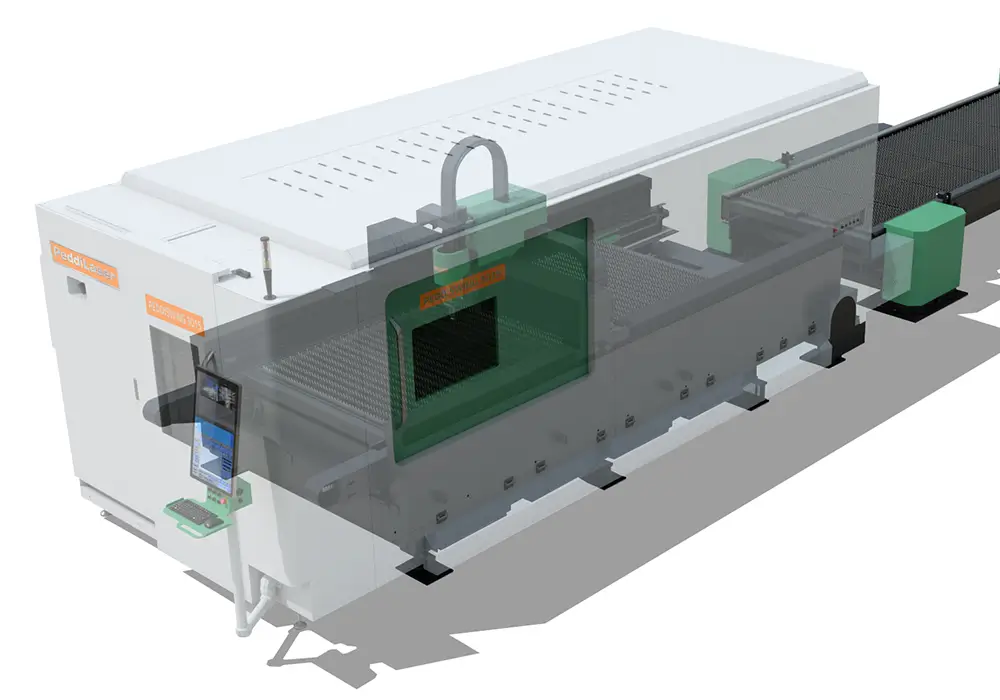

Laser Steel Plate Processor

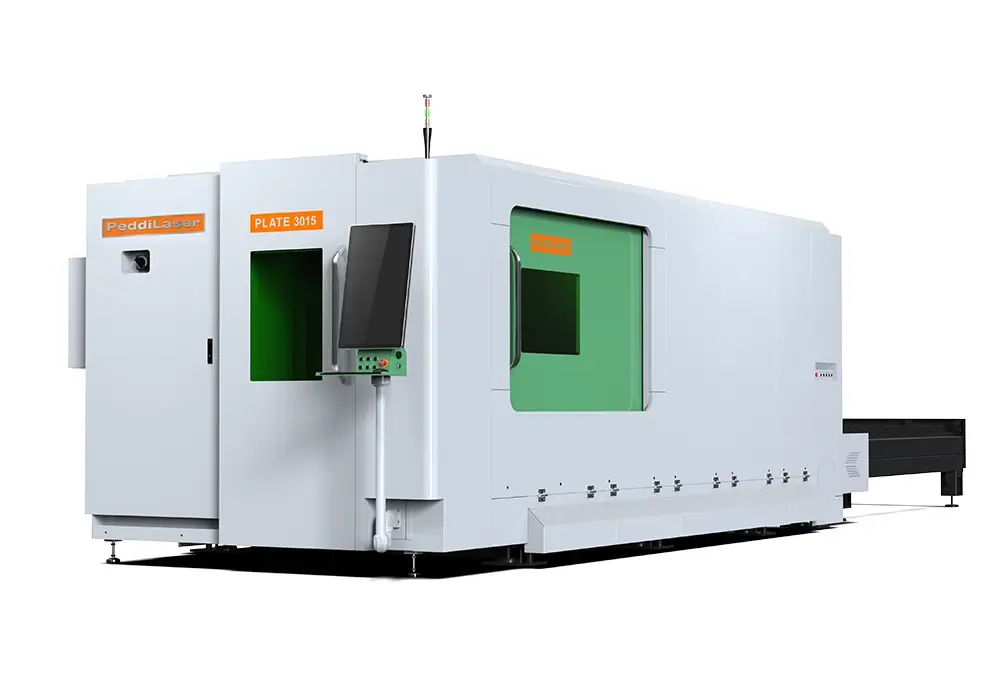

PeddiSwing
A low-cost, high-yield, and efficient 2D laser cutting machine
Overview

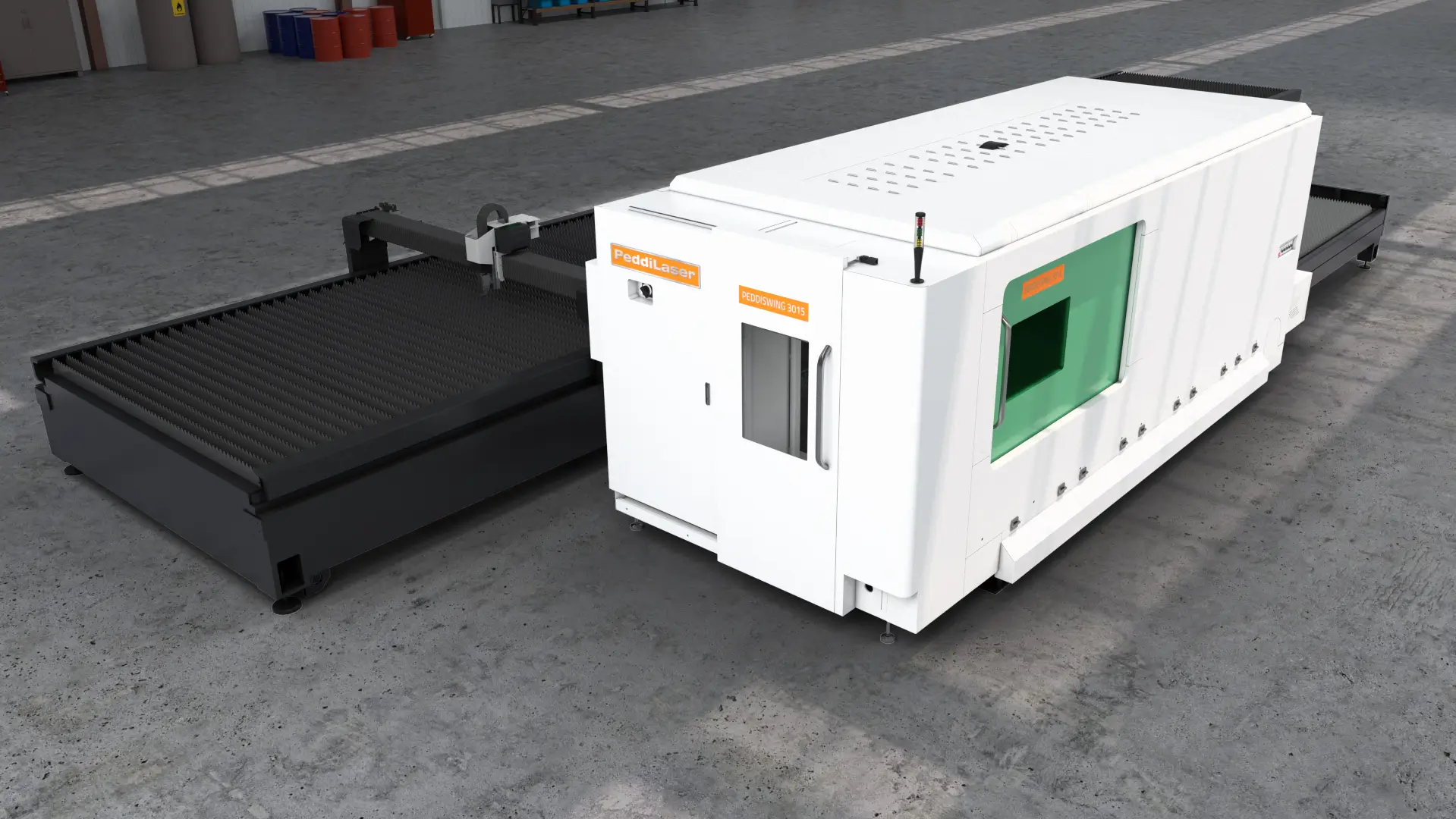

The kid brother to the PeddiBolt, the PeddiSwing laser cutting machine is a low-cost, high-yield, highly efficient, high-precision machine. This model is perfect for shops with smaller footprint requirements while maintaining high output production.
This machine features a modular bed frame design, with separate components for high dynamic motion and high load-bearing. This design ensures the loading capacity when cutting thick plate and the long-term stability of the machine.
Documents
Specifications
Base Model:
3015
X Travel:
124"
Y Travel:
63"
Positioning Accuracy:
0.002"
Mechanical Repeatability:
0.0007"
Rapid Speed:
459 ft/min
Maximum Acceleration:
1.5G
Laser Power:
12000W
Maximum Weight:
3115 lbs
Maximum Thickness:
1.575"
Operating System:
Smart Manager

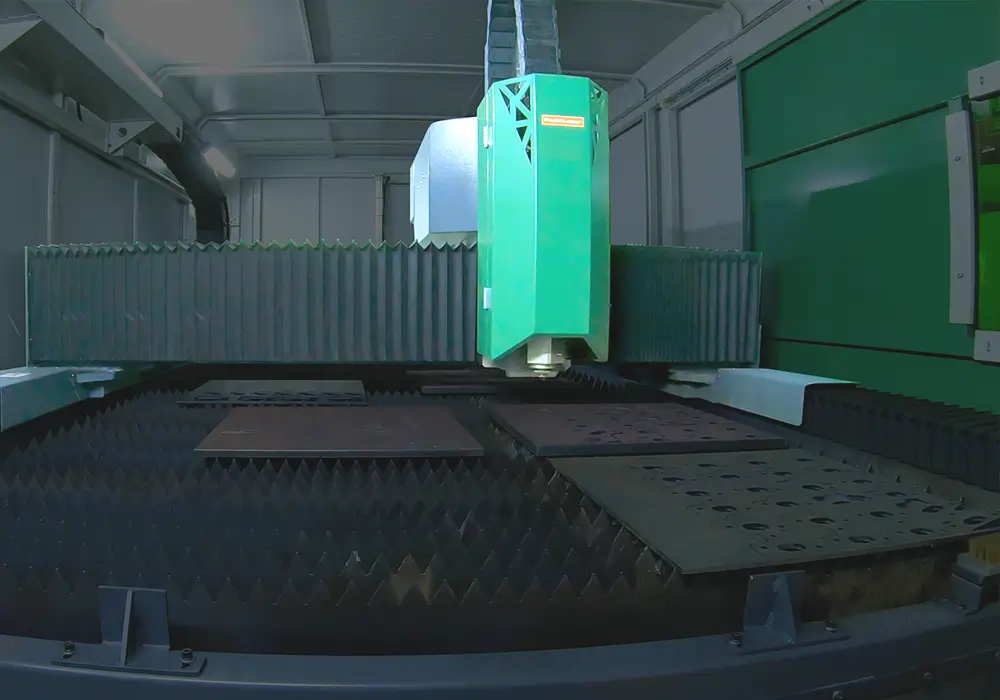

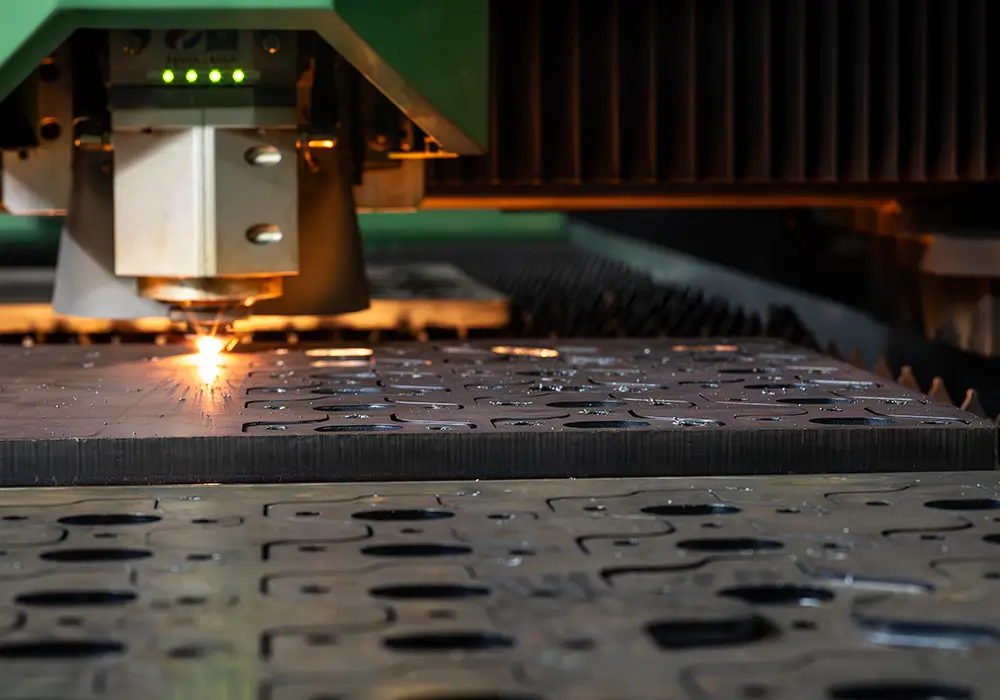

The Power Behind the Cut: A Visual Showcase
Each photo reveals the advanced technology
and craftsmanship behind every precise cut,
showcasing what makes our machines truly
exceptional.
As you explore the gallery, you'll see the power and precision that define our cutting- edge solutions. These images not only highlight the sleek design but also demonstrate the machines' ability to handle even the toughest tasks. Whether you're upgrading your operations or admiring the art of laser cutting, this gallery offers a glimpse into the future of manufacturing.
As you explore the gallery, you'll see the power and precision that define our cutting- edge solutions. These images not only highlight the sleek design but also demonstrate the machines' ability to handle even the toughest tasks. Whether you're upgrading your operations or admiring the art of laser cutting, this gallery offers a glimpse into the future of manufacturing.
Don't just take our word for it
watch this machine rip through plate in record time

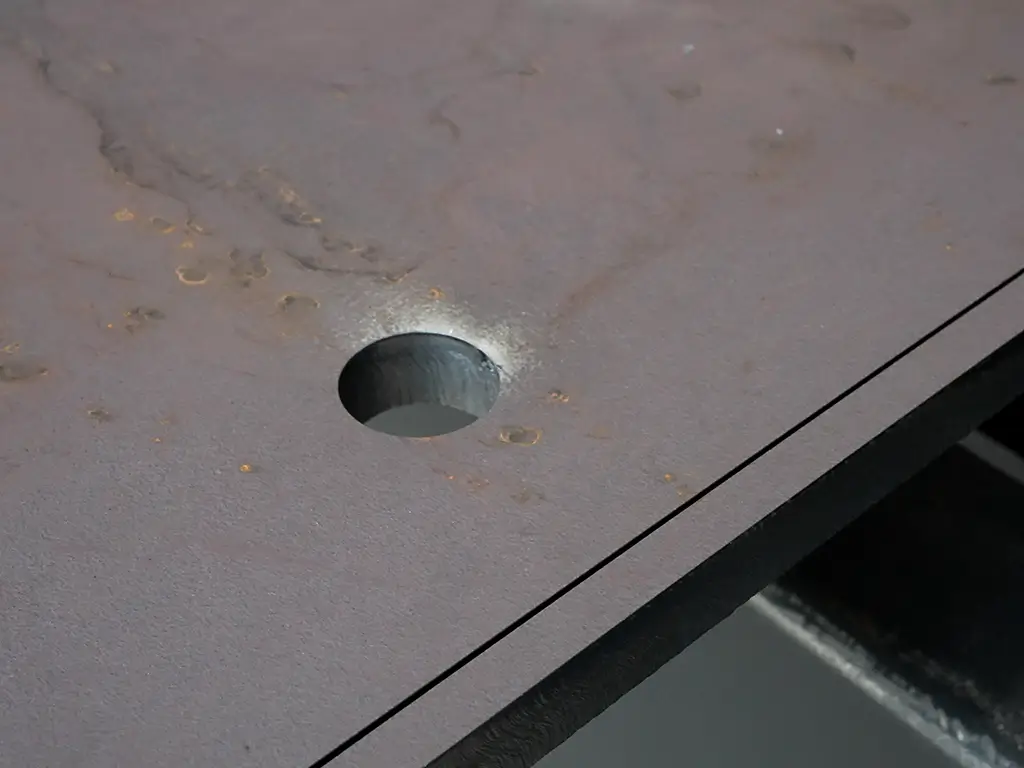

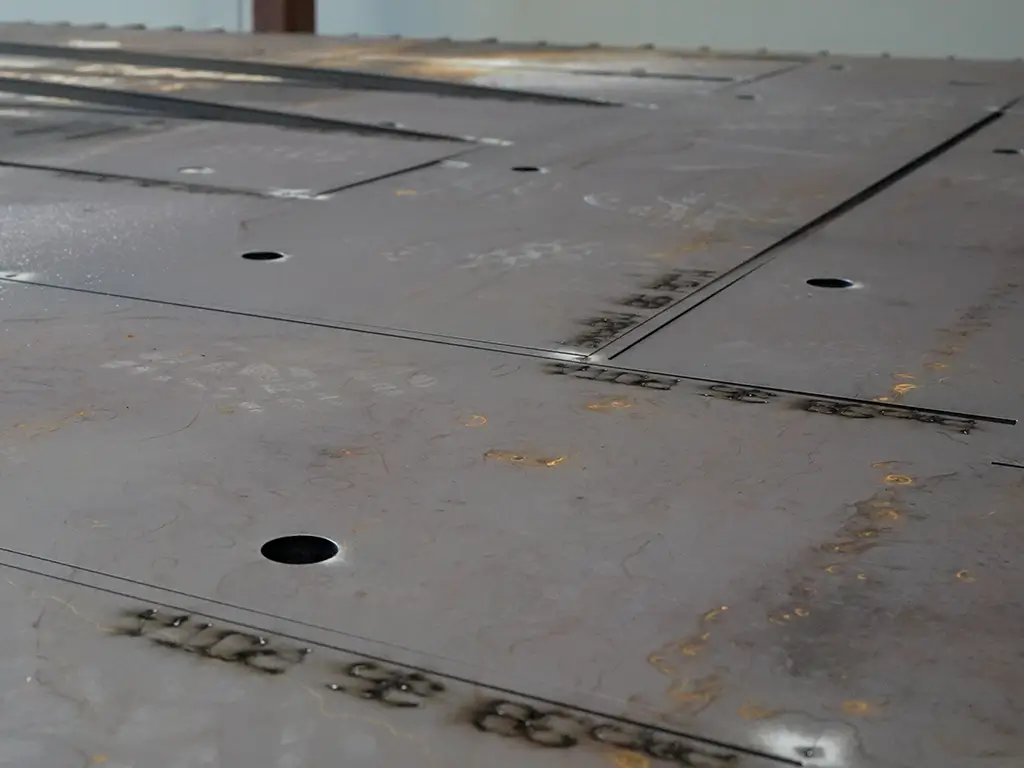

Holes, Cuts &
Part Marking
30 Marks • 109 Cuts • 60 Holes • 49 Finished Parts
Completed in 11 Minutes
Proof in performance
watch this machine shred through plate in record time

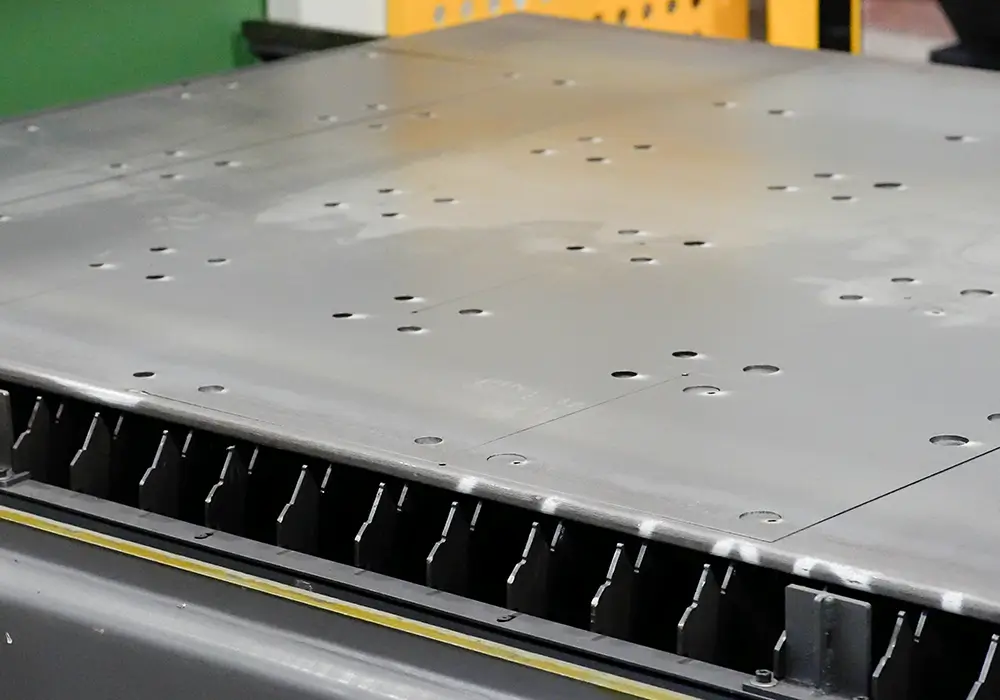

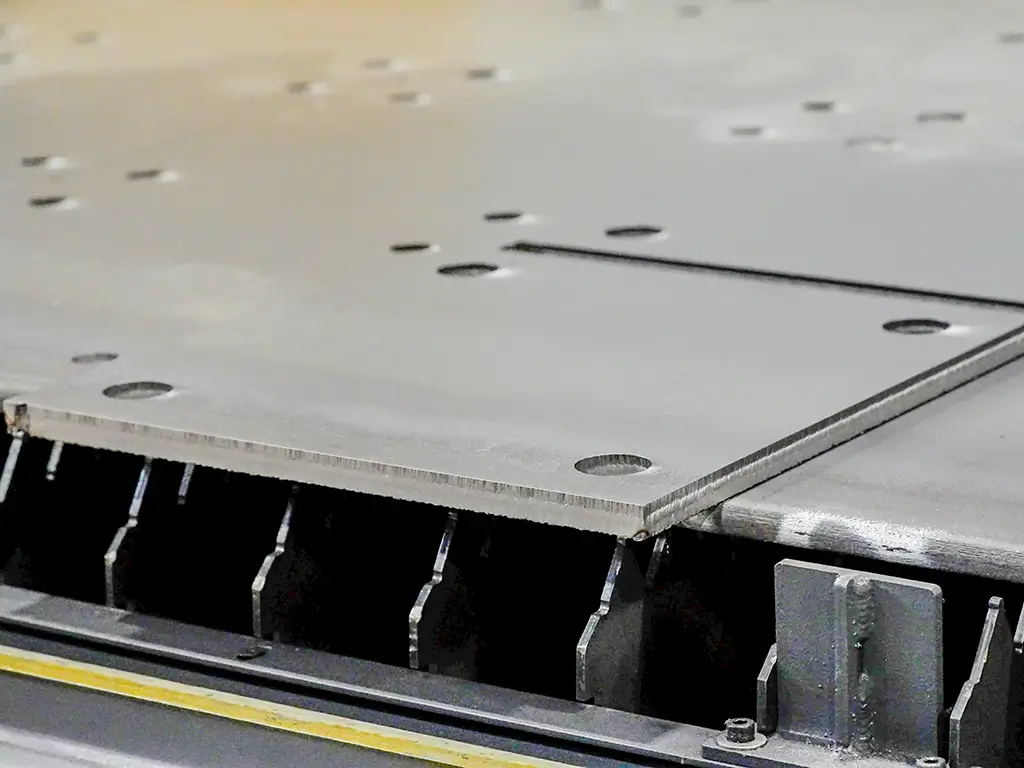

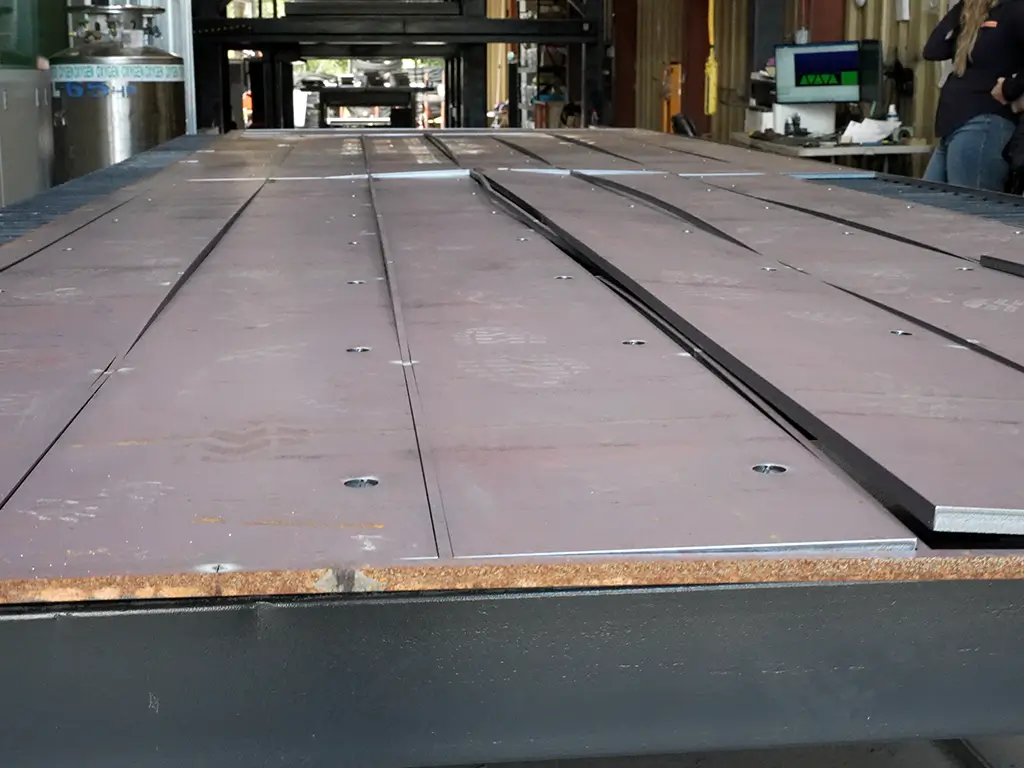

Base Plates
101 Cuts • 80 Holes • 20 Finished Parts
Completed in 11 Minutes

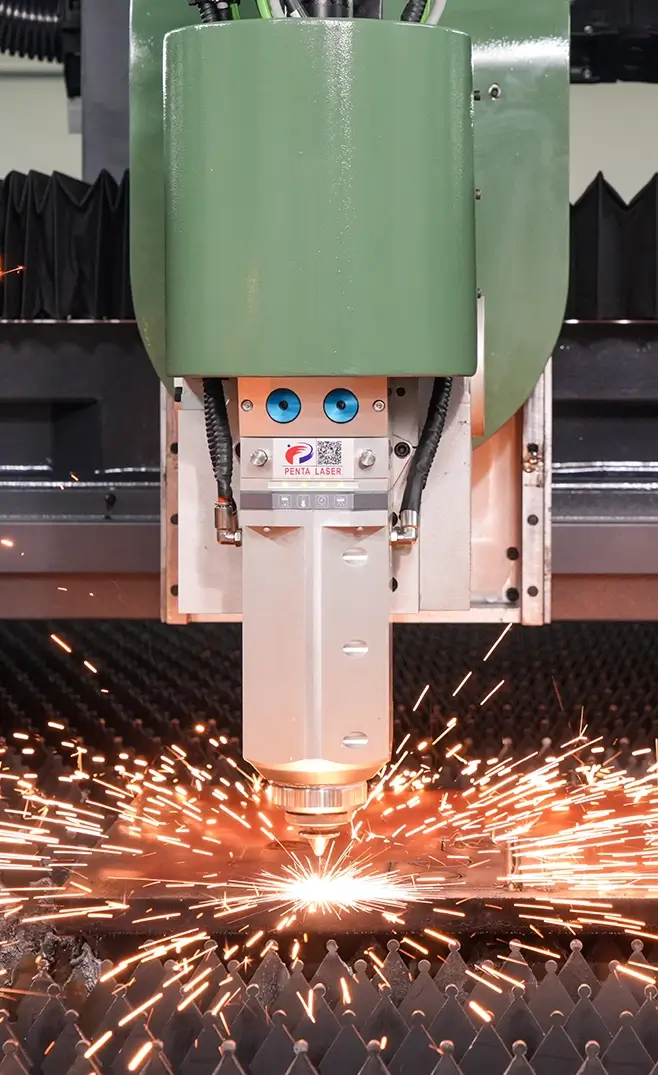

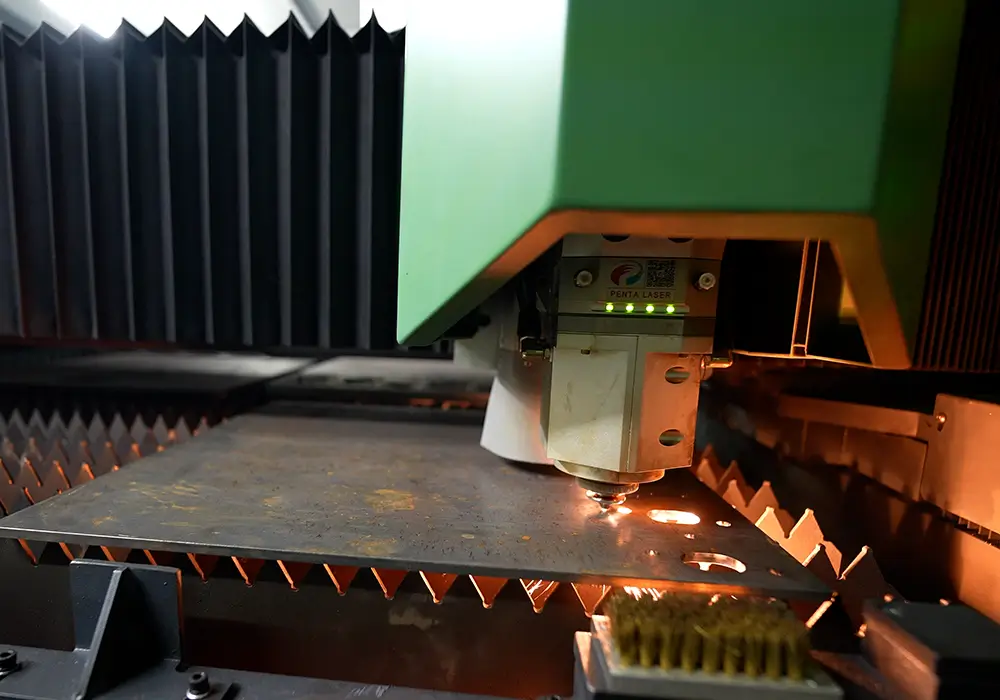

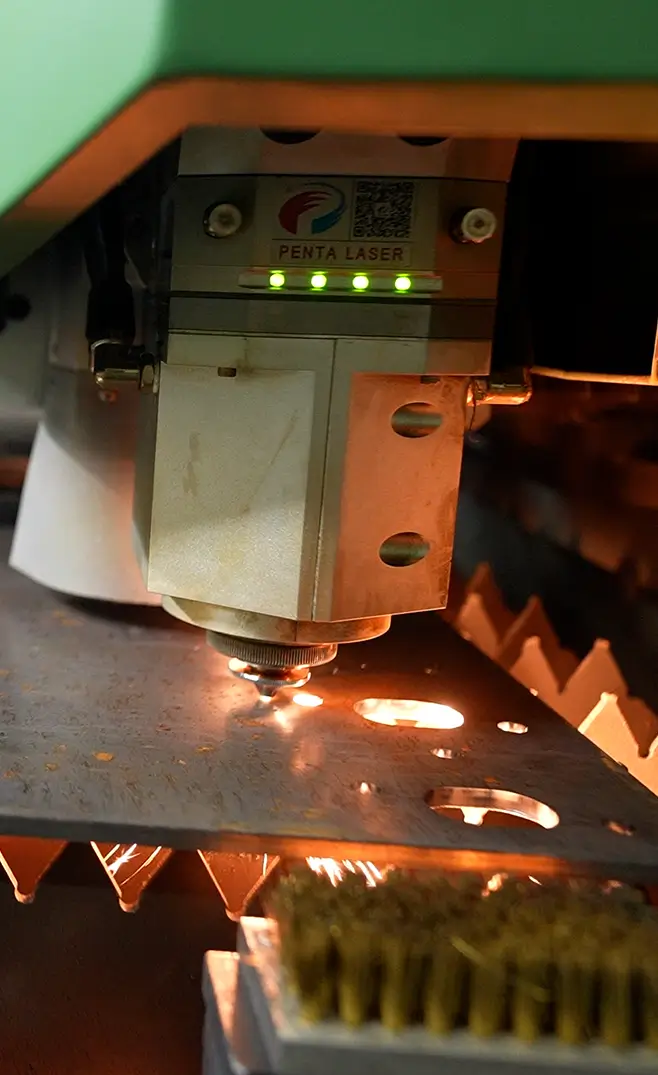

Laser Cutting Head

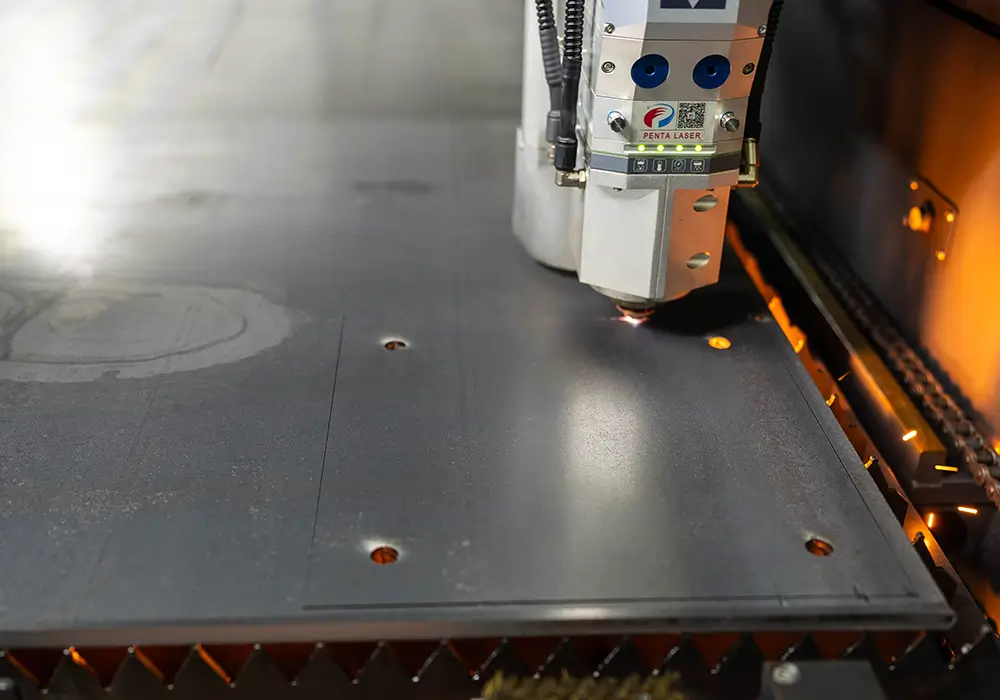

The PeddiSwing employs a specialized laser cutting head designed with a 0-contact automatic height tracking system which enables the cutting head to adjust its height automatically in response to deviations in material without affecting cutting performance, enhancing response speed and processing efficiency.

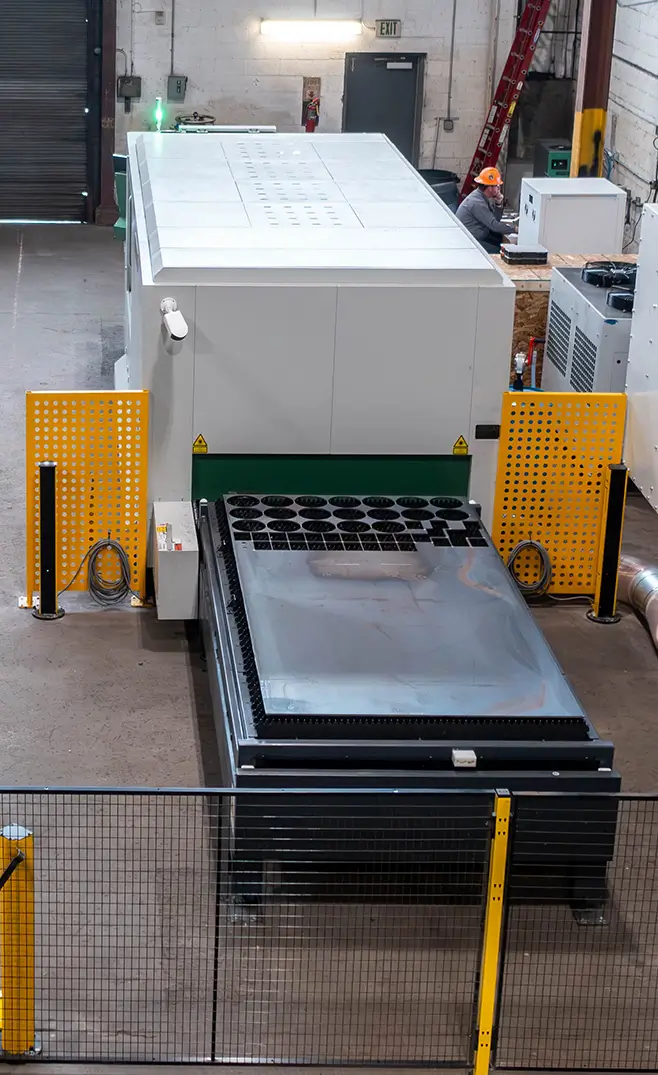

Robust Machine Frame
The rigid machine base crafted from high-quality steel plate undergoes a meticulous secondary aging treatment to guarantee the machine’s shock resistance and stability.

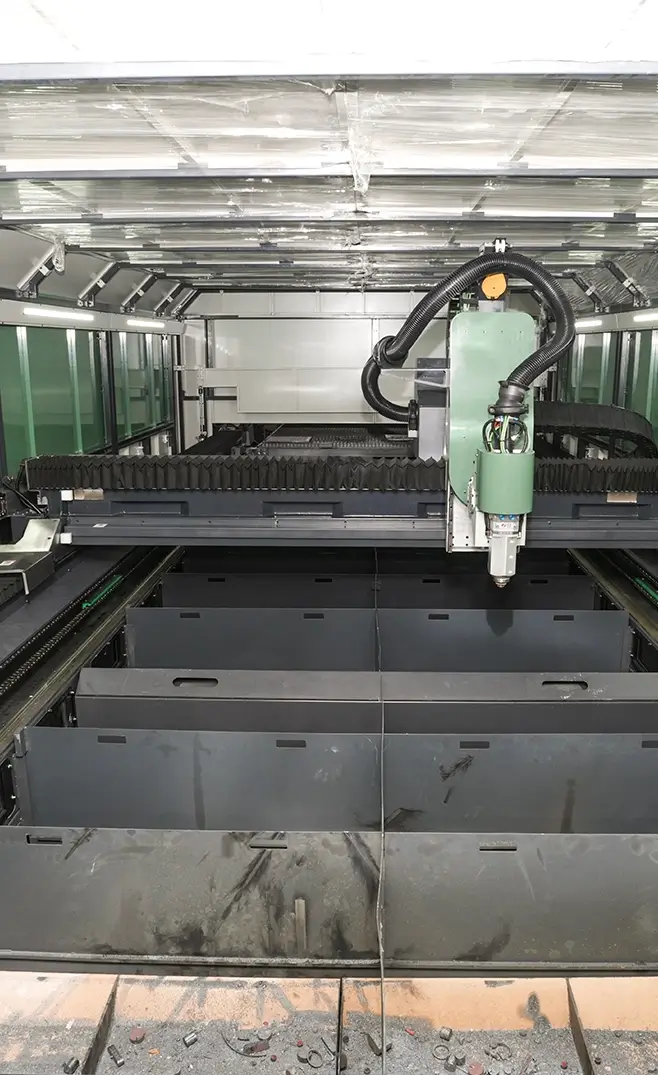

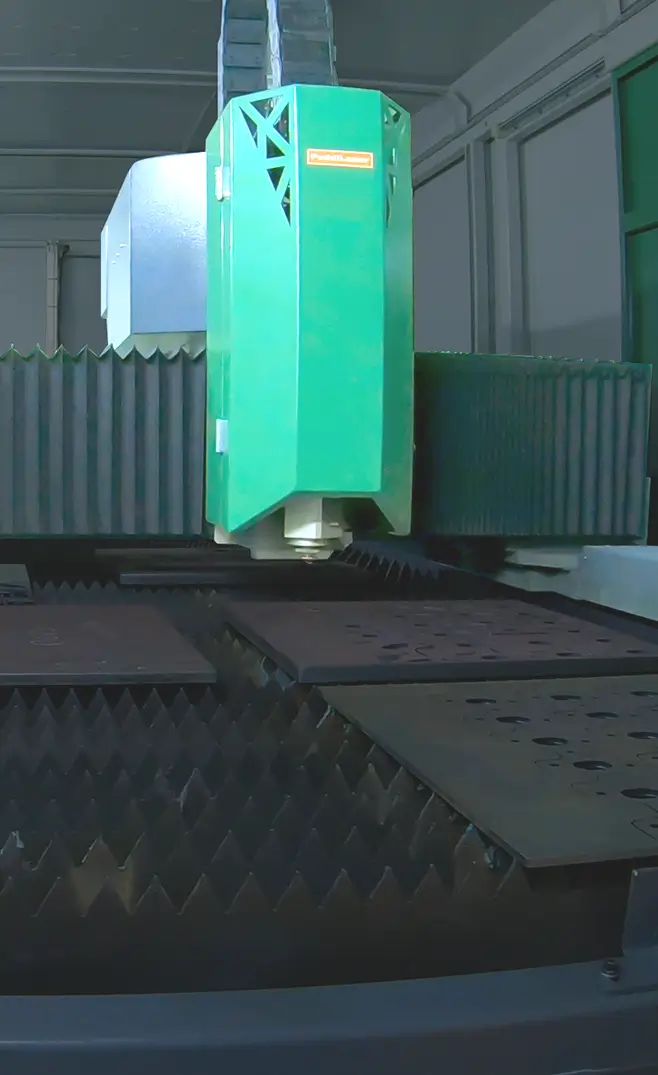

Gantry Mechanism
The PeddiSwing’s gantry offers exceptional lightness and rigidity, allowing for low inertia and high speeds. This gantry enables the PeddiSwing to move at an actual acceleration of 1.5G, faster than most laser cutting machines.

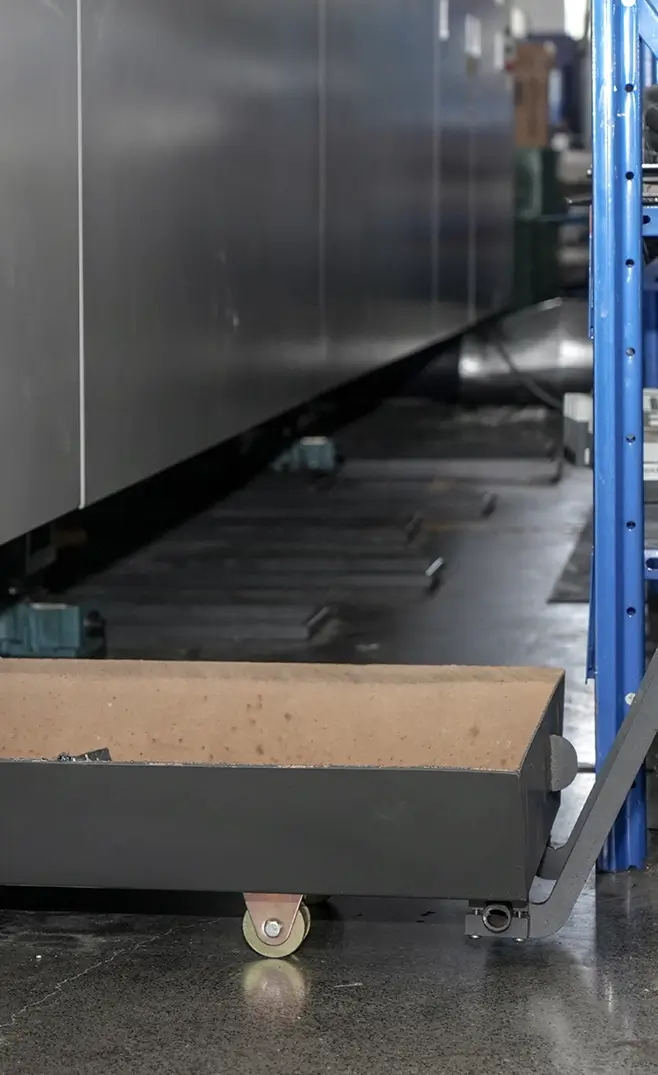

Dust Filtration and Collection
The PeddiSwing adopts a zoned downdraft dust collection design used to properly ventilate dust and other waste created during cutting processes. This system paired with a state-of-the-art dust collector creates a safe working environment for operators.

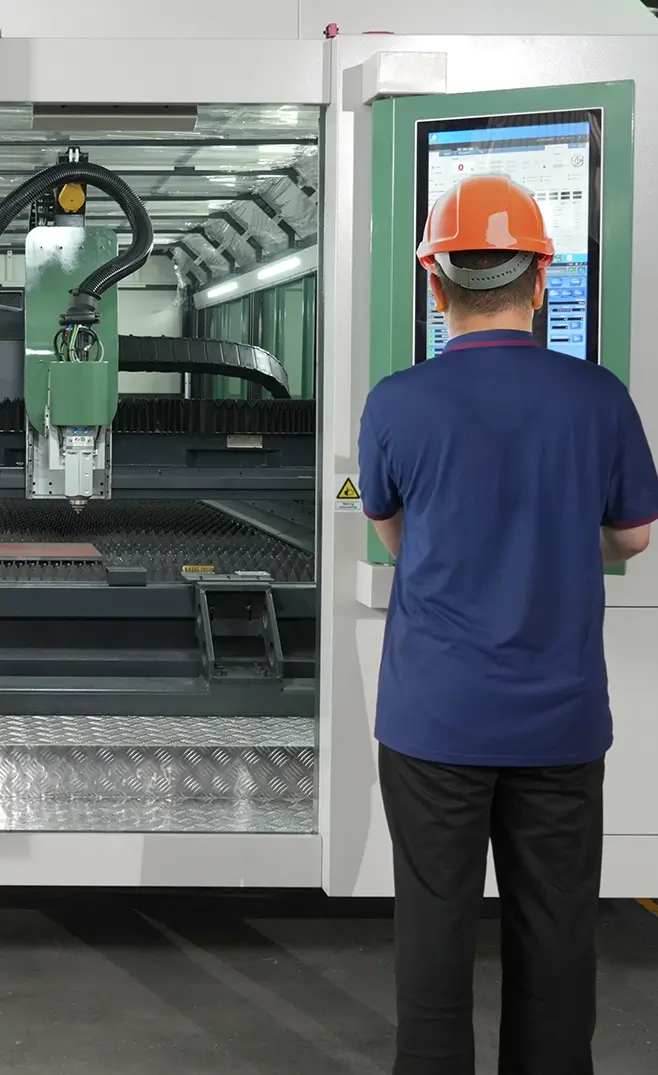

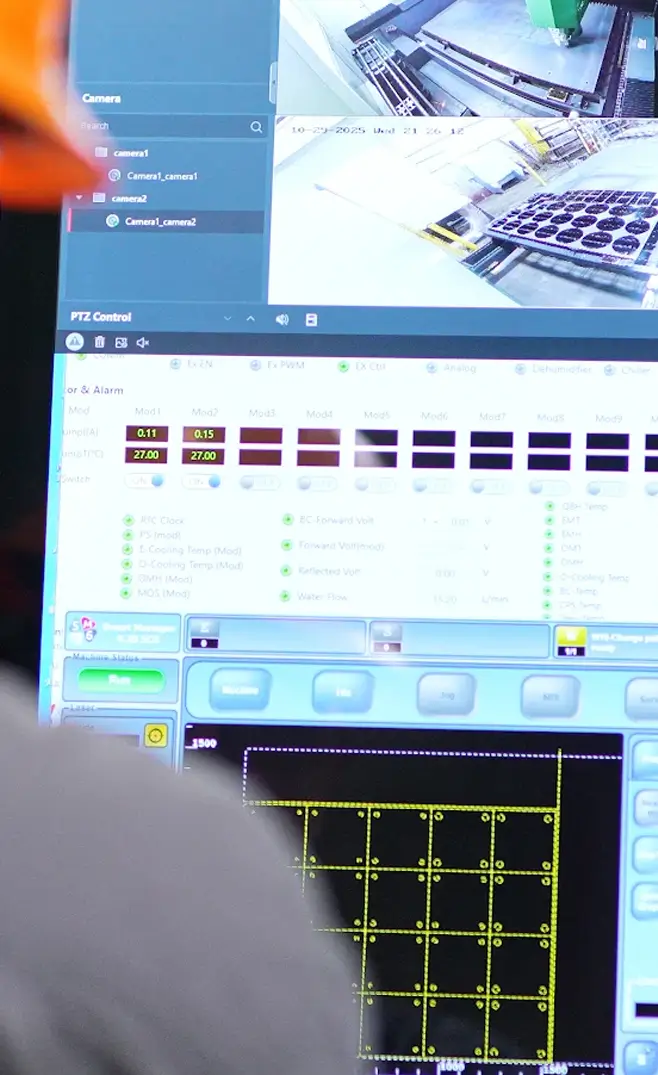

Control System
Control of the PeddiSwing is carried out by a modern CNC control unit. The intuitive and easy-to-use interface allows for real-time control of laser cutting processes via Smart Manager Software at your fingertips.
