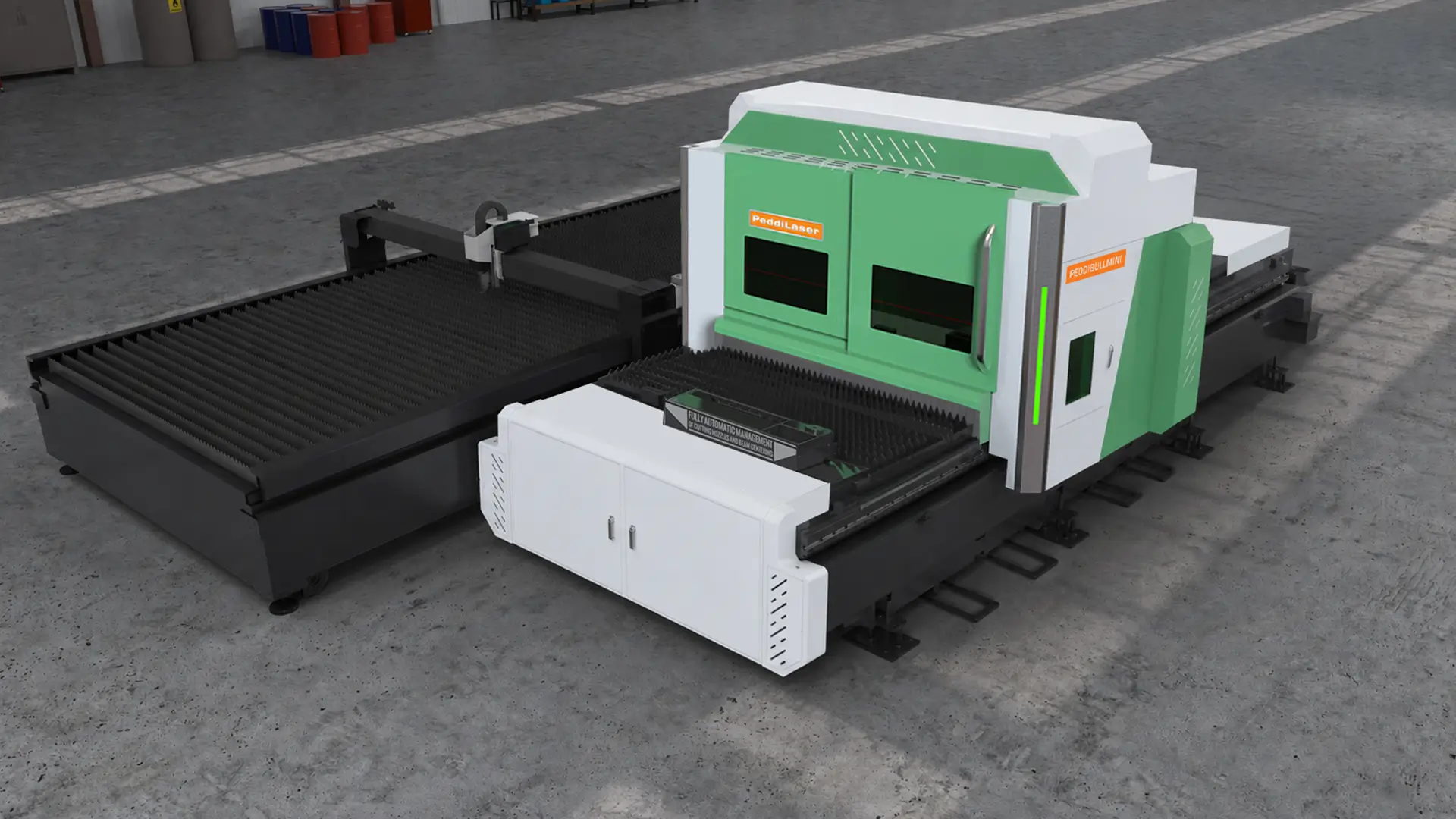

Fiber Laser Metal Cutting Machine
PeddiBullMini
Overview
Specifications

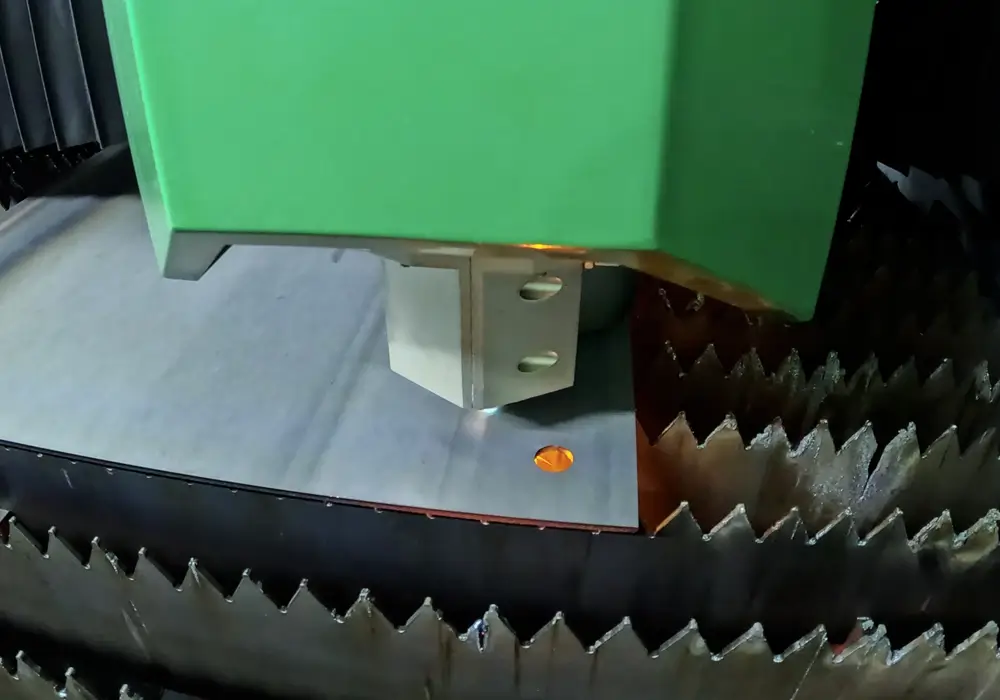

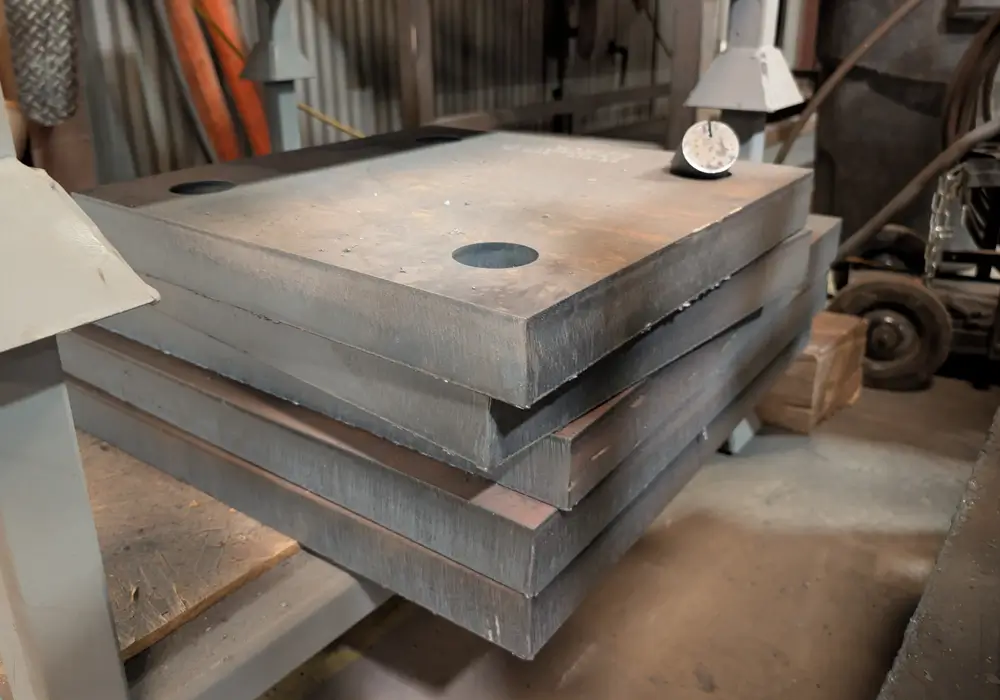

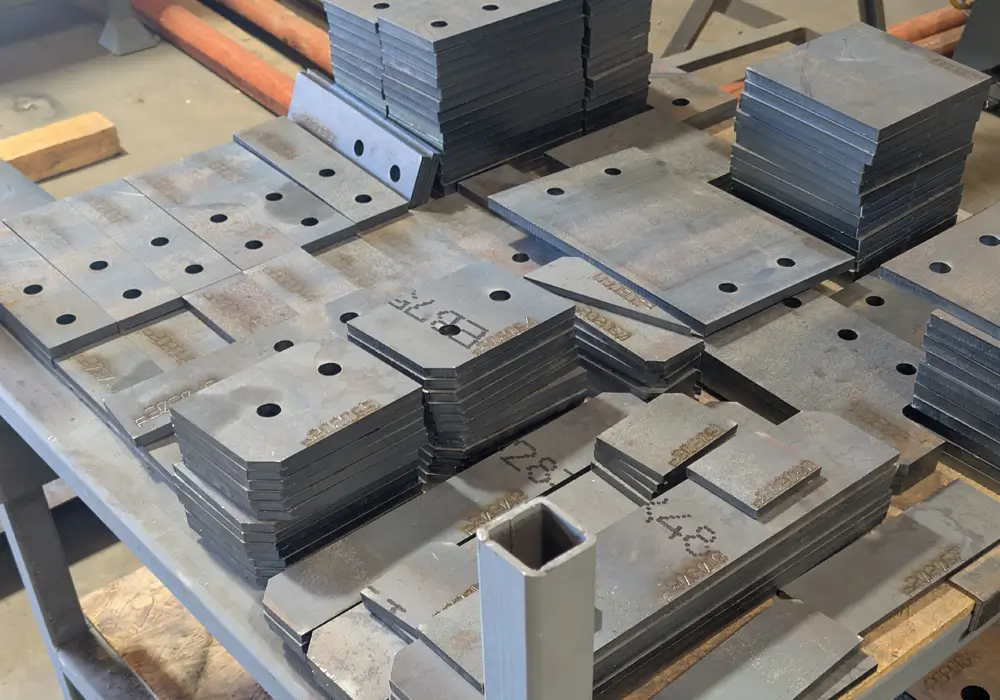

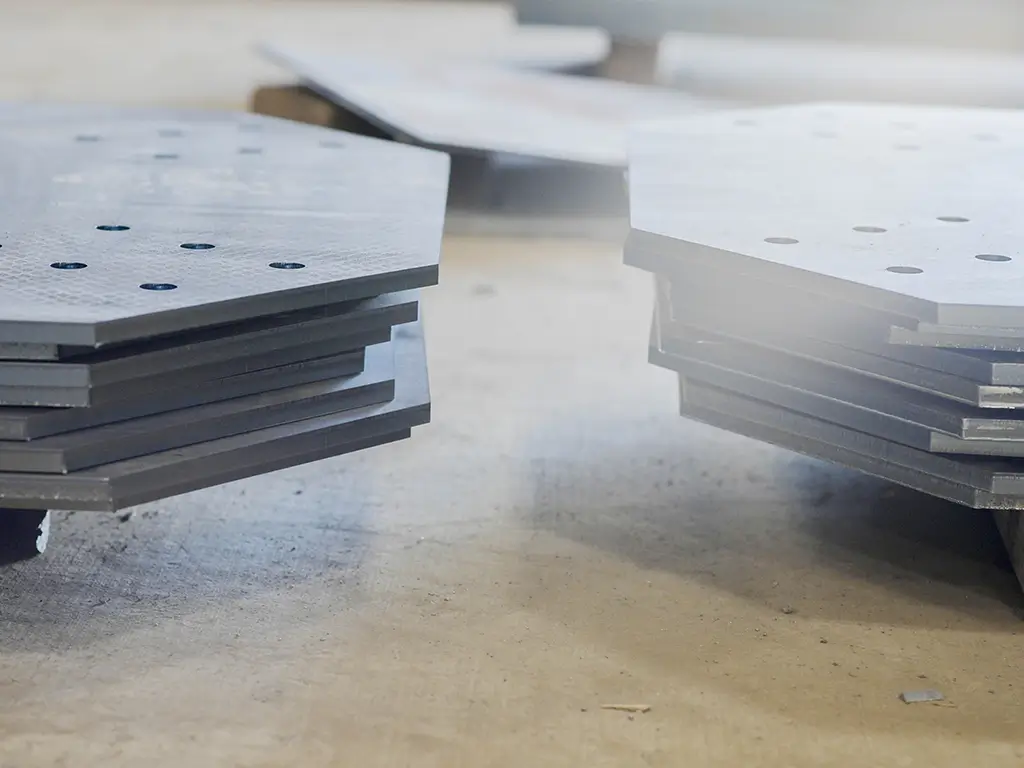

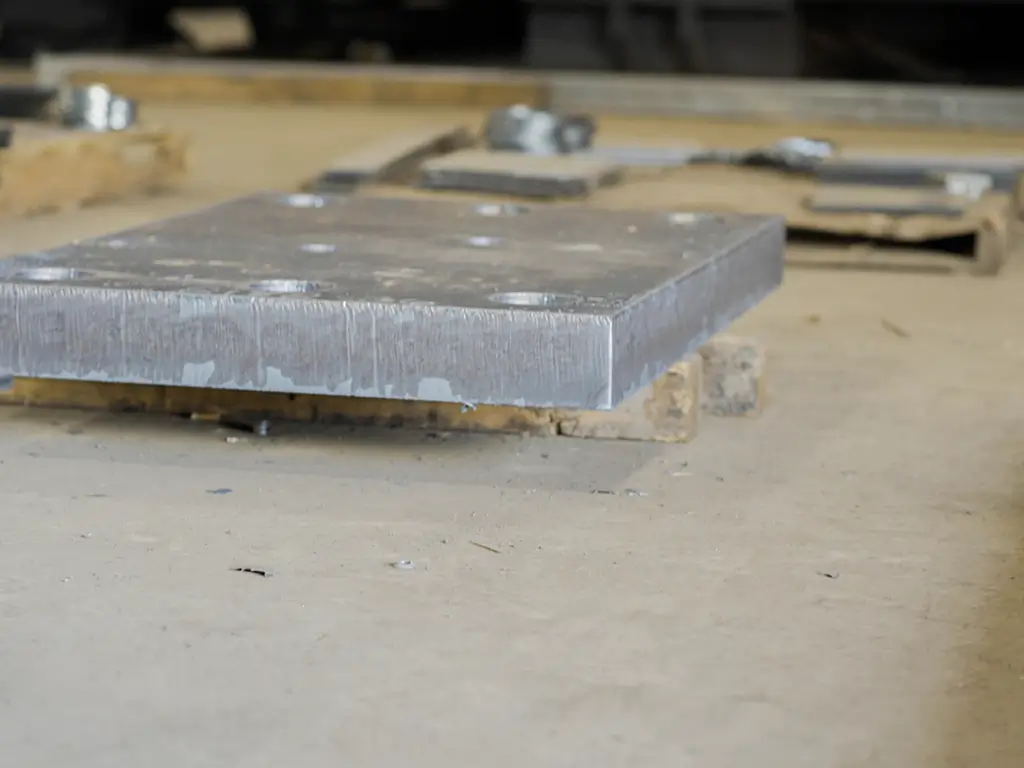

The Power Behind the Cut: A Visual Showcase

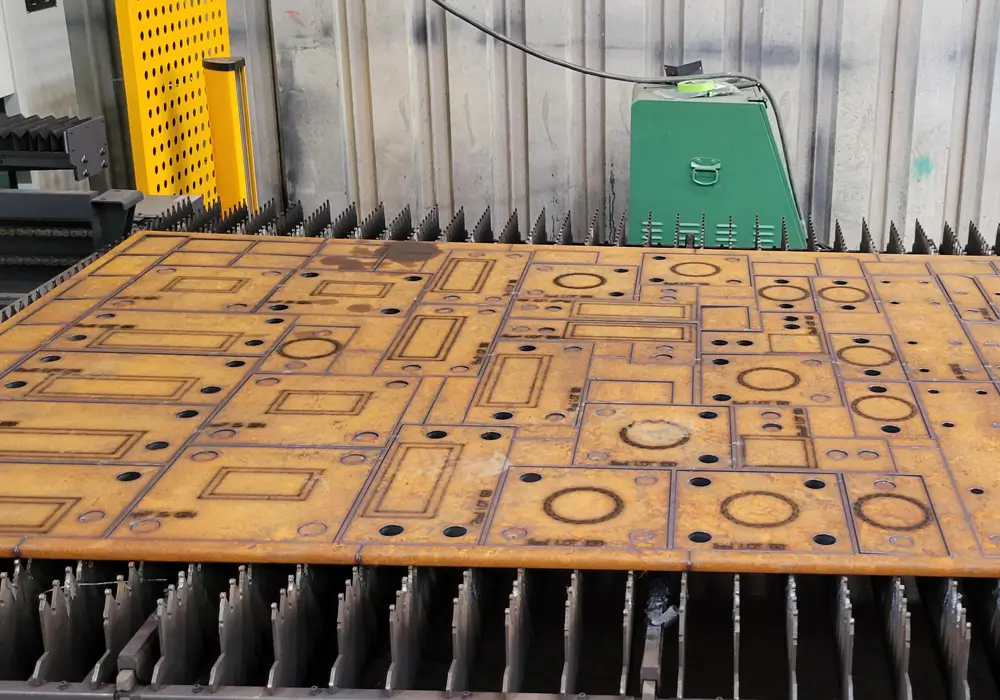

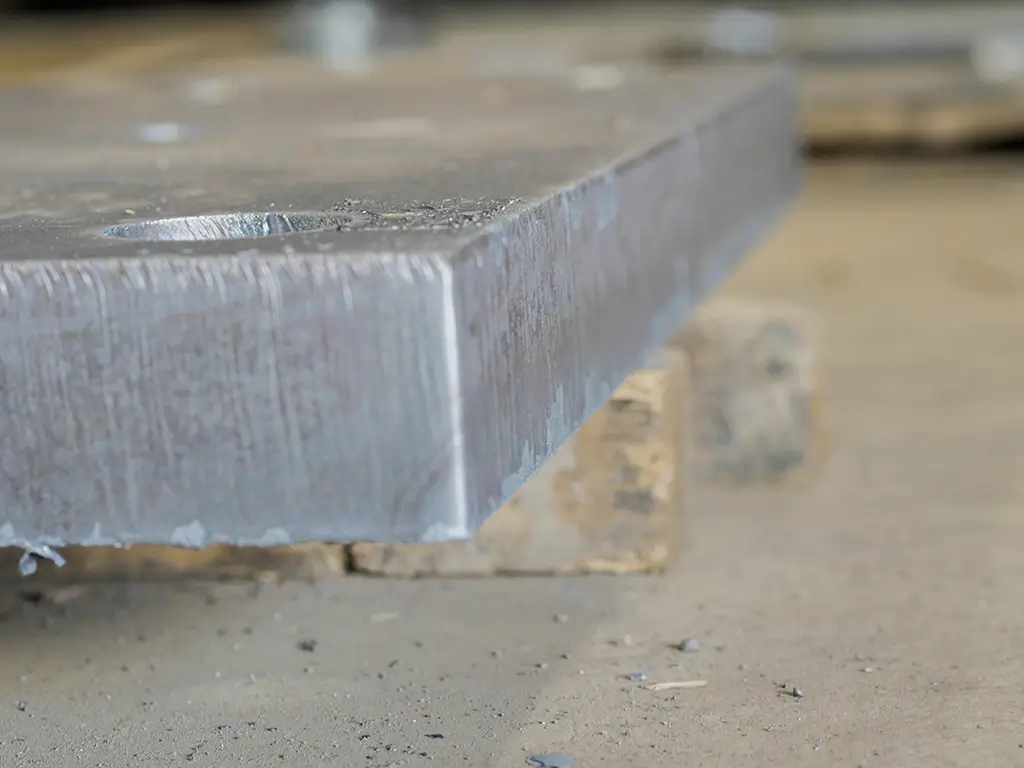

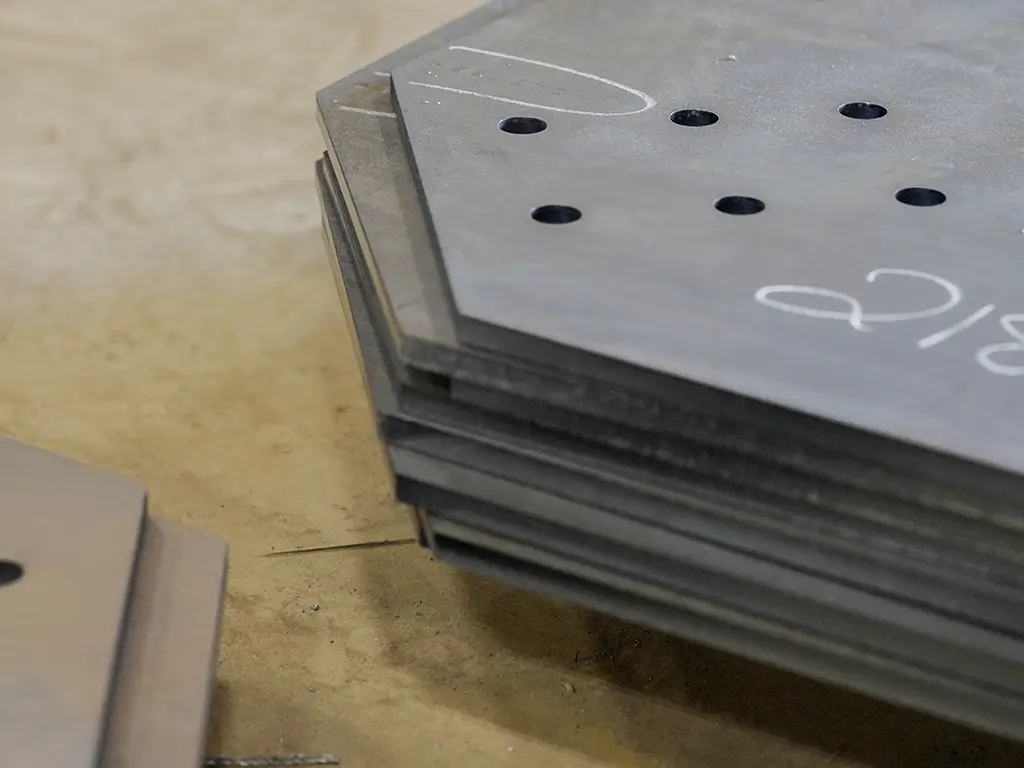

As you explore the gallery, you'll see the power and precision that define our cutting- edge solutions. These images not only highlight the sleek design but also demonstrate the machines' ability to handle even the toughest tasks. Whether you're upgrading your operations or admiring the art of laser cutting, this gallery offers a glimpse into the future of manufacturing.

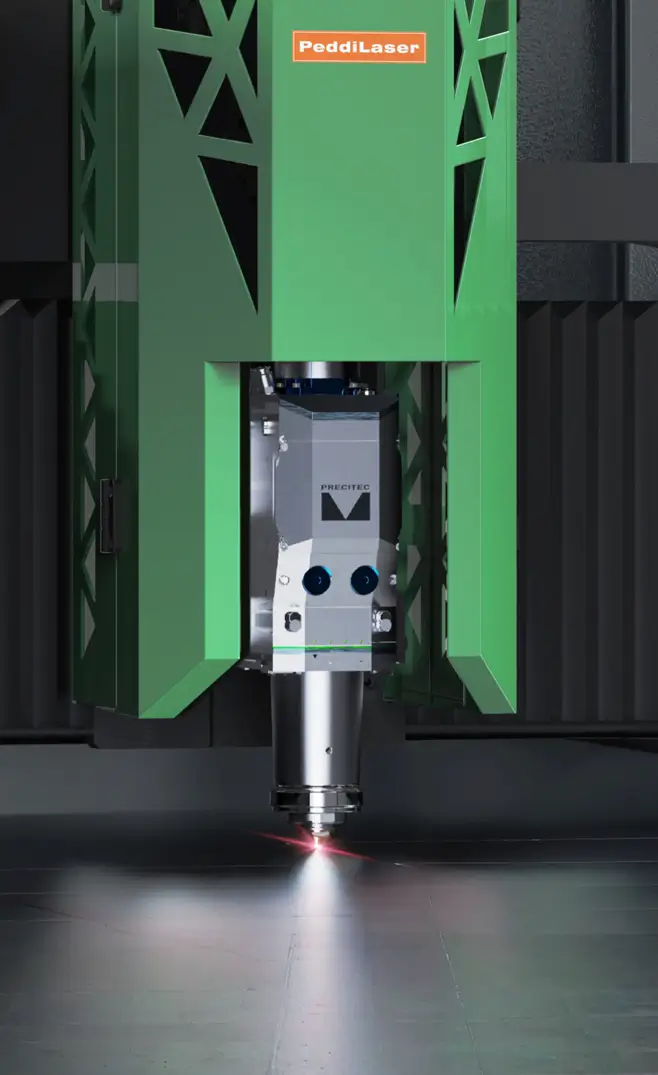

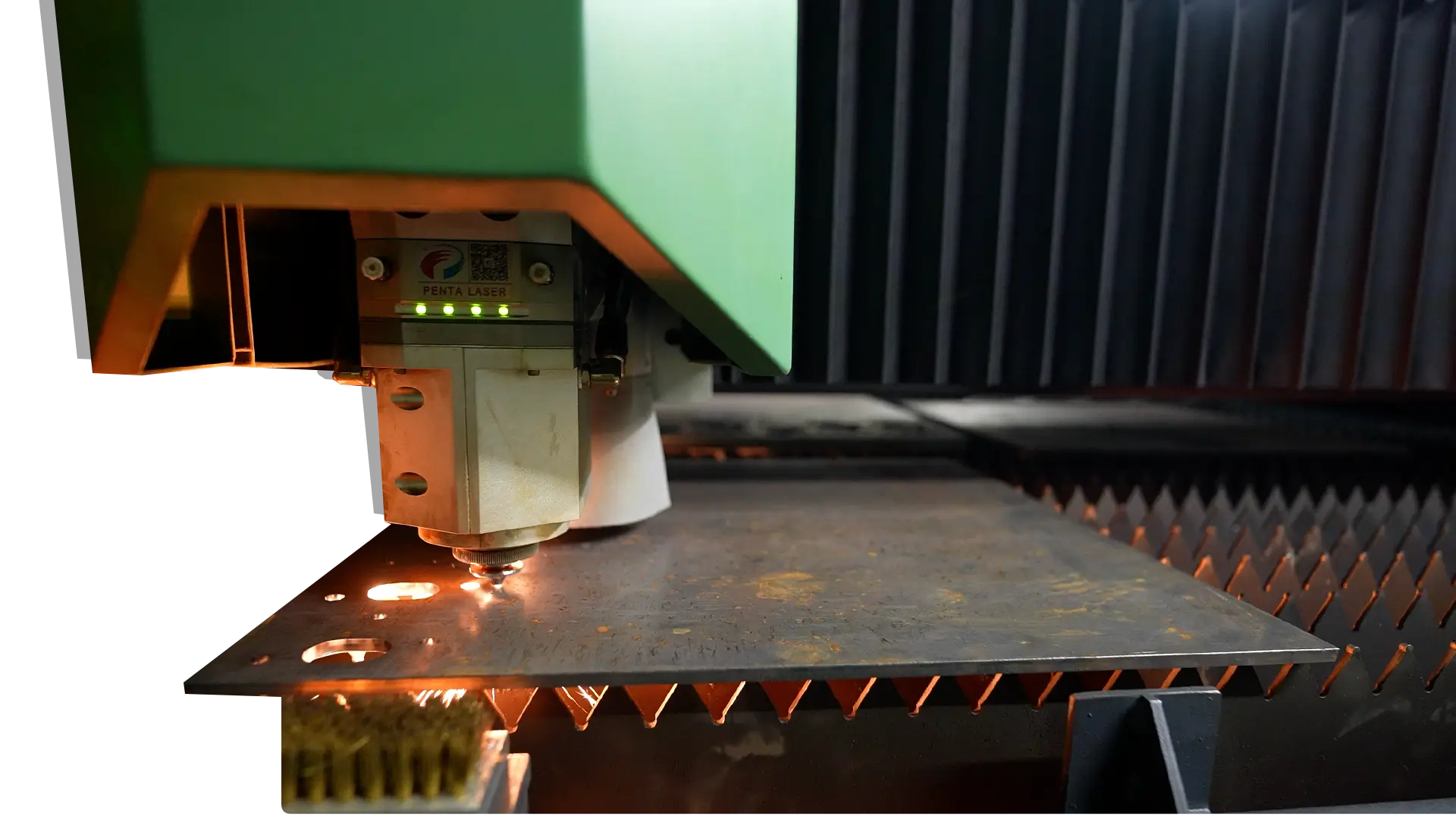

Laser Cutting Head
The PeddiBullMini employs a specialized laser cutting head designed with a 0-contact automatic height tracking system which enables the cutting head to adjust its height automatically in response to deviations in material without affecting cutting performance, enhancing response speed and processing efficiency.

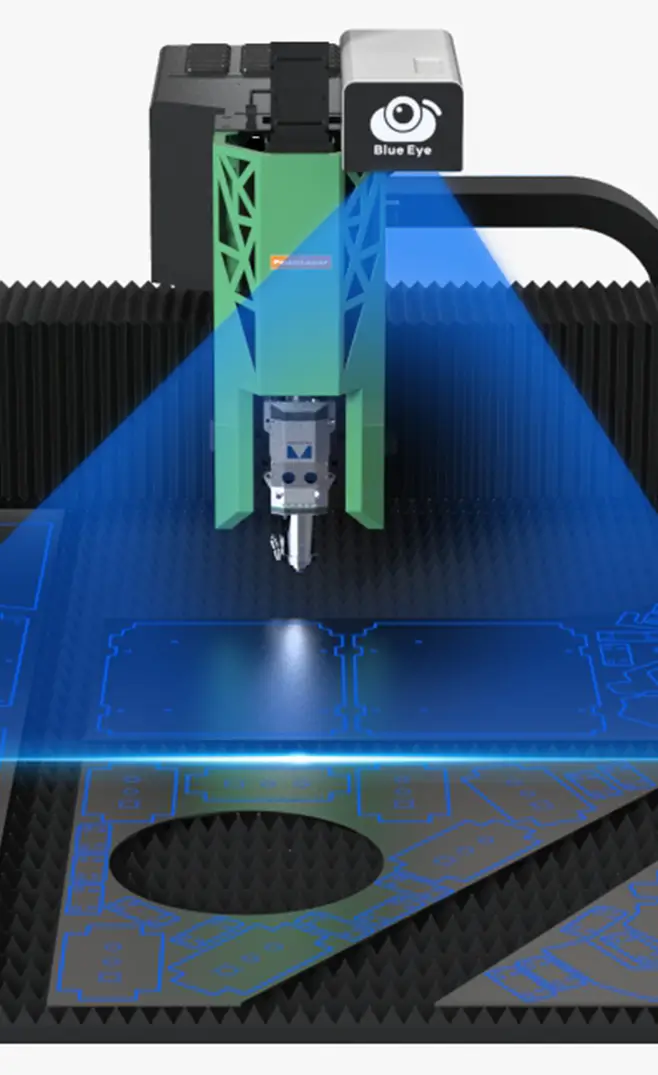

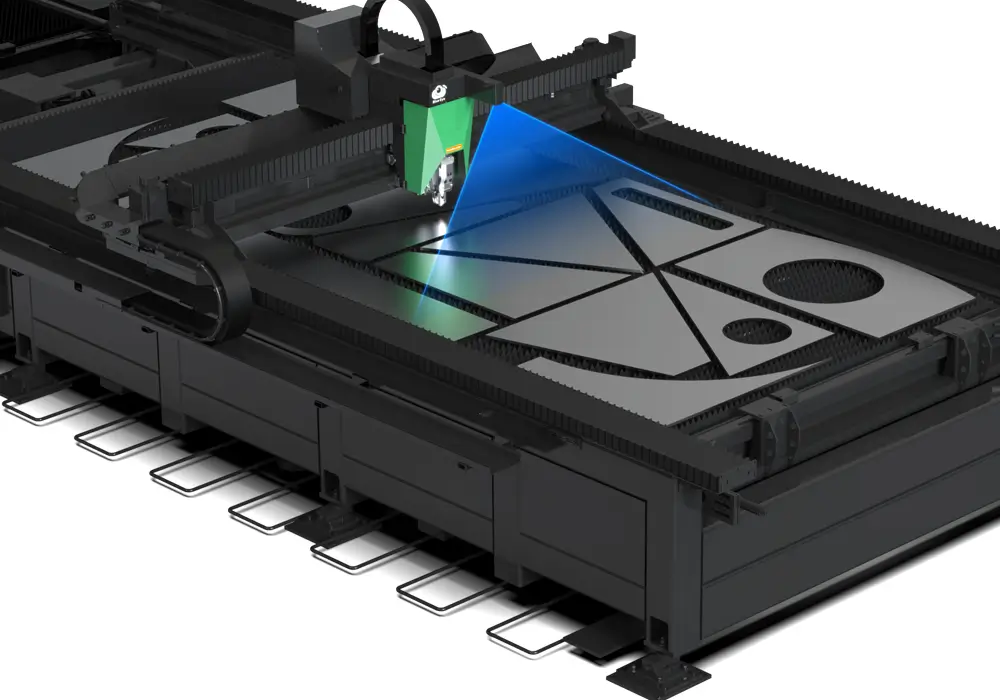

Blue Eye Intelligent Remnant Cutting
The Blue Eye feature uses intelligent vision technology to accurately identify, measure and track leftover sheet material for reuse in future production runs. By maximizing sheet utilization and optimizing nesting efficiency, the system significantly reduces material waste and improves overall yield. Automated material recognition streamlines workflow planning and helps lower operating costs while increasing production efficiency.

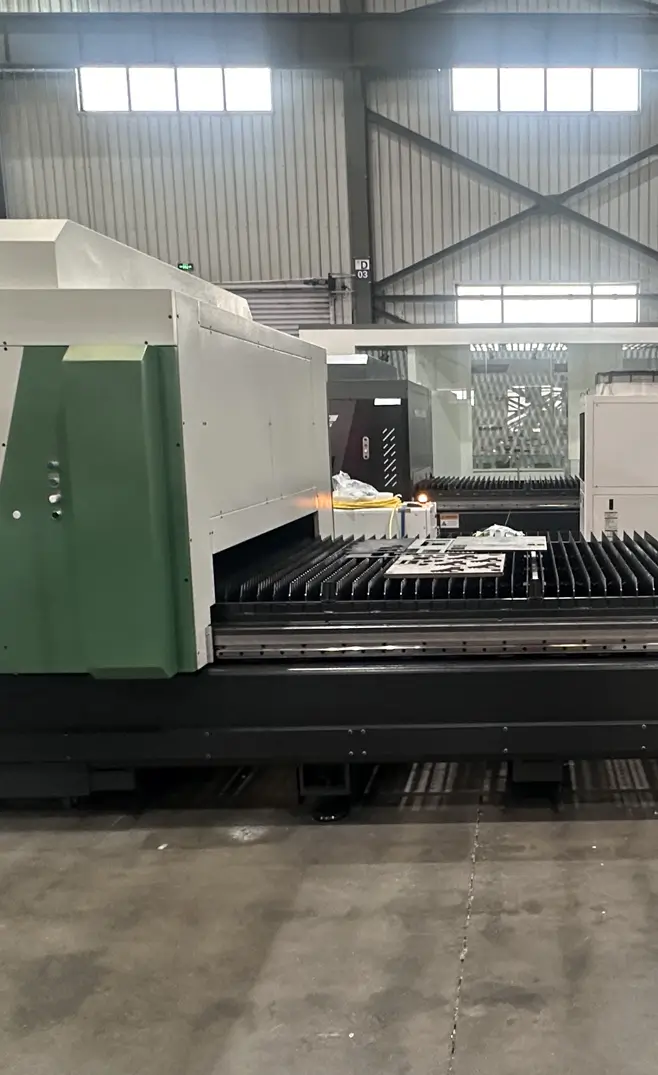

Robust Machine Frame and Gantry System
The rigid machine base crafted from high-quality steel plate undergoes a meticulous secondary aging treatment to guarantee the machine’s shock resistance and stability. This system uses a left-right separated ground rail structure with high-precision guides and rack-and-pinion drive designed with performance in mind. The cutting gantry is constructed from robust steel beams and features independently moving left and right slides, with the entire structure precisely driven by a combination of imported reducers, motors, ball-type linear guides, and helical rack gears for smooth and accurate motion.

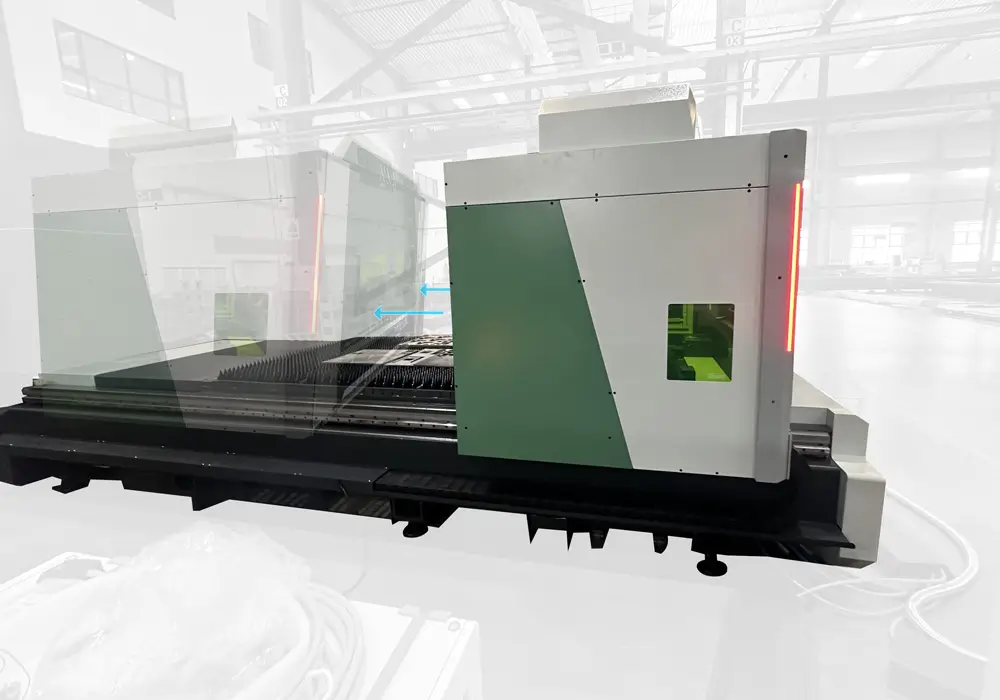

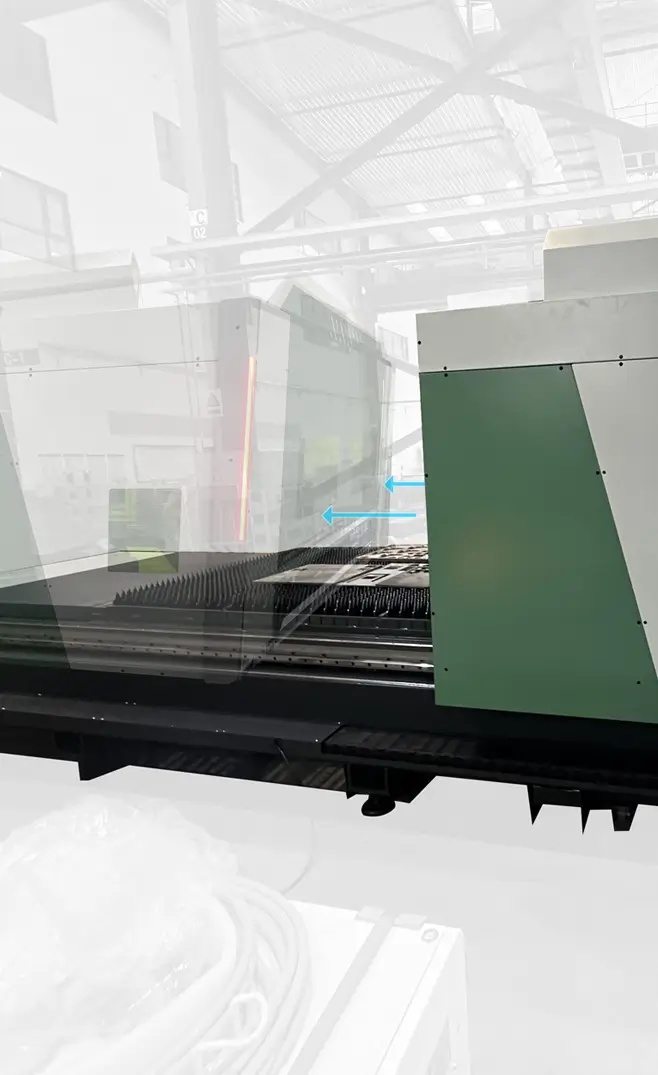

Moveable Machine Cover
The movable machine cover is an independent safety enclosure that operates separately from the gantry beam, offering full laser shielding and electromechanical protection without mechanical linkage. It completely encloses the cutting area to prevent laser leakage and uses perimeter laser radar sensors for enhanced safety monitoring. Designed with a dynamic buffer zone, the enclosure stays stationary during central cutting. When needed, the control system intelligently moves the enclosure in sync with the cutting path, enabling safe, high-speed localized cutting and efficient large-area processing.

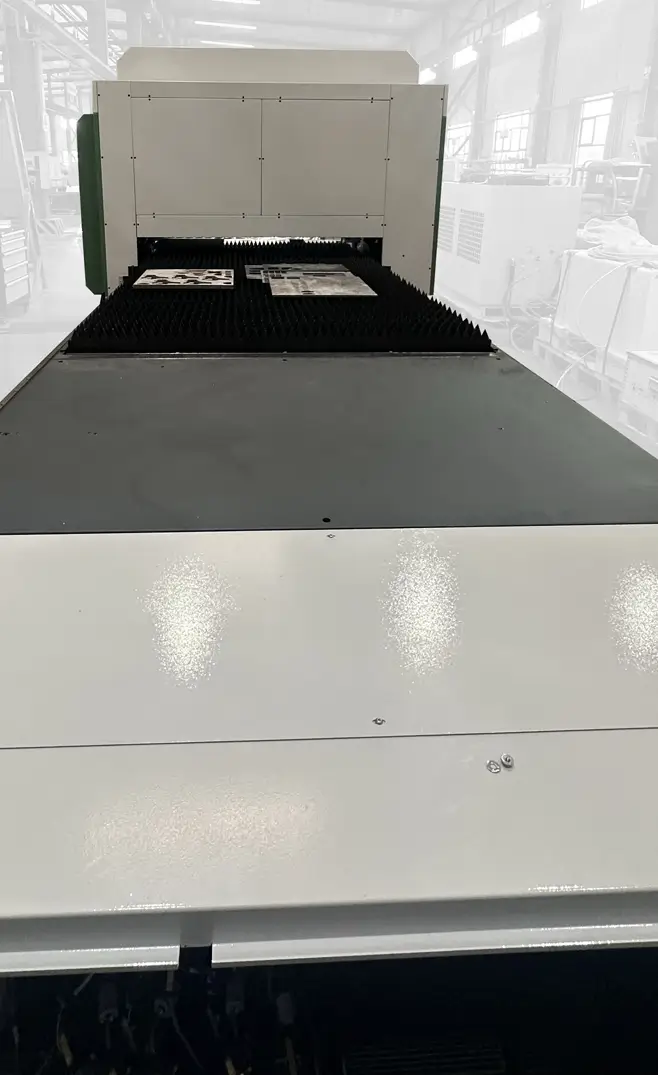

Working Table
The worktable is designed with a special detachable structure that keeps it stable, protects it from potential laser damage, and makes it easy to replace and maintain. The support tooth plate is mounted directly on the frame, which helps transfer pressure through side air ducts to the foundation, preventing stress from affecting the frame and causing long-term deformation. An adjustable pad at the bottom allows for easy height and level adjustments, ensuring accurate cutting, even for thick materials.

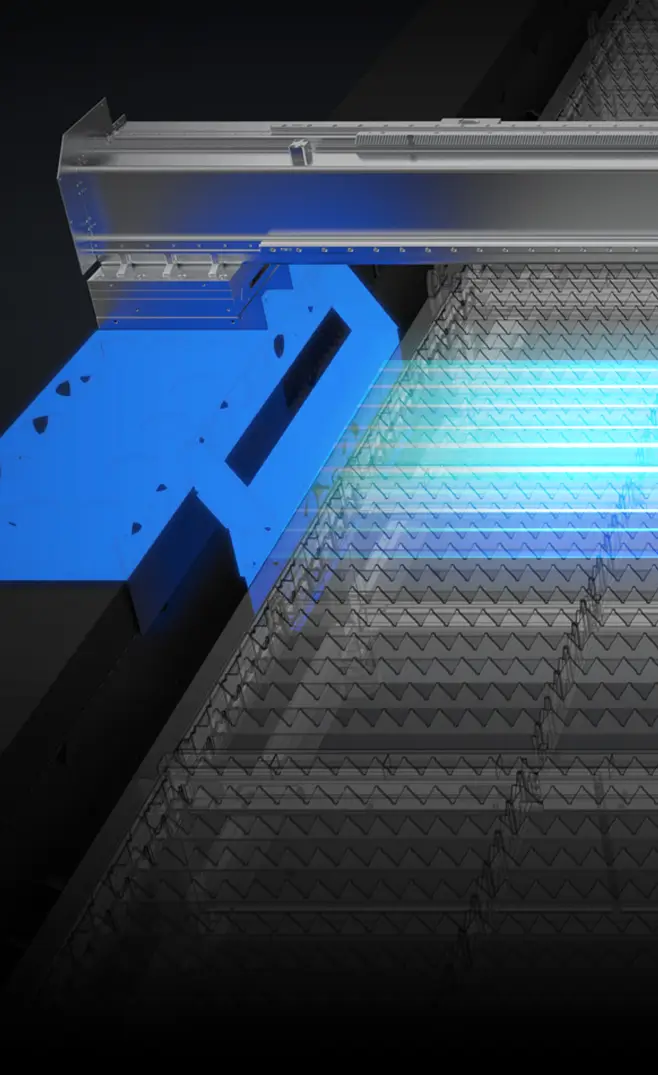

Dust Extraction System
The PeddiBullMini utilizes a combination system of blowing and suction, along with a dust removal fan and belt-driven extractor to properly ventilate dust and other waste created during cutting processes. This system creates a safe working environment for operators.

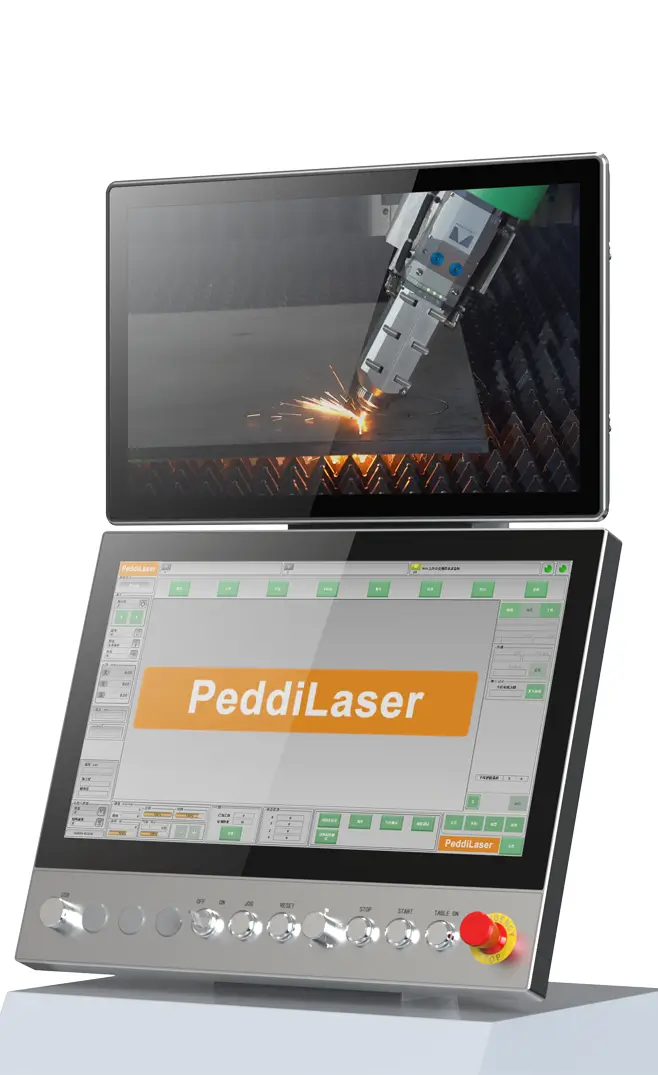

Smart Manager Software
The PeddiBullMini comes equipped with the Windows-based Smart Manager Software. Smart Manager is notoriously user-friendly and features a database of cutting process parameters that can be adjusted in real-time during processing to optimize cutting speed and finish quality. Smart Manager’s nesting function also facilitates automatic nesting of multiparts and is compatible with DSTV files.
